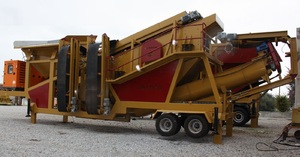

Washing-and-screening-plants-617 - Polokwane

CONTACT DRAGON MACHİNERY +905426661111
Main Conveyor Belt System:
It is 800 mm wide and is of palette type.
Drive drums are rubber coated and threaded.
The gear units are 3 transducer type "K" and the new generation is a system with torque connection.
Side scraper system is available to prevent outflow.
By means of the sputter collecting system, material drop is provided around the groove.
Vibrating Screen System High Capacity:
Screen Size : 1500 X 4250 mm
Motor Power : 15 kw
Number Of Decks : 3 Decks
Special type suitable for vibration.
Washing Screw System
Screw Size: 650 X 6000 mm
Washing Spiral Type: 2 Helical
Hourly Water Needed: 30 - 80 m3
Under-Sieve Stock Conveyor Belt System
It is 700 mm wide and foldable type. Drive drums are rubber coated and threaded. The gear units are 3 transmission type and the new generation is with torque connection system. A side scraper system is available to prevent spillage of the final product into the stock area during casting. Material collection around the groove is achieved thanks to the collecting system. All three stock conveyors are folding type and have a large under-sieve stock area. A total of 3 products can be obtained from the mobile screen system. Hydraulic system is used in the system to ensure ease of operation. The mobile screening system is fixed thanks to the hydraulic system and feet.
Stock Conveyor Belt System
There are two 500 mm wide folding type. Drive drums are rubber coated and threaded. The gear units are 3 transmission type and the new generation is with torque connection system. A side scraper system is available to prevent spillage of the final product into the stock area during screening.
